DONATONI P 425
DONATONI P425 is the result of Donatoni’s twenty years of experience in the production of CNC bridge saws. It has been designed and developed for processing ceramics (porcelain stoneware) and other synthetic and natural materials.
DONATONI P425 is a compact and user-friendly 5-axis interpolated milling machine, yet flexible enough to allow a wide range of operations.
Equipped with various optional features, it enables total automation of the production processes, thereby reducing processing times. The monoblock structure and compact dimensions ensure efficient transport and quick installation.
MAIN FEATURES
TECHNICAL SCHEDULE
|
Max number of interpolated axes |
N° 5 |
|---|---|
|
Vertical stroke Z axis |
mm 300 |
|
Blade-carrying head rotation (C axis) |
gradi -5° / +365° |
|
Blade-carrying head tilting (A axis) |
gradi 0° / 90° |
|
Working table dimensions |
mm 3500 x 1800 |
|
Maximum cutting depth |
mm 115 |
|
Spindle power |
kW 2.2 S1 / 2.5 s6 |
|
Maximum bridge speed (Y axis) |
m/min 0 - 20 |
|
Carriage stroke X axis |
m/min 0 - 20 |
|
Maximum bridge speed (Y axis) |
m/min 0 - 20 |
|
Bridge stroke Y axis |
mm 1900 |
|
Minimum blade diameter |
mm 300 |
|
Maximum disc diameter |
mm 425 |

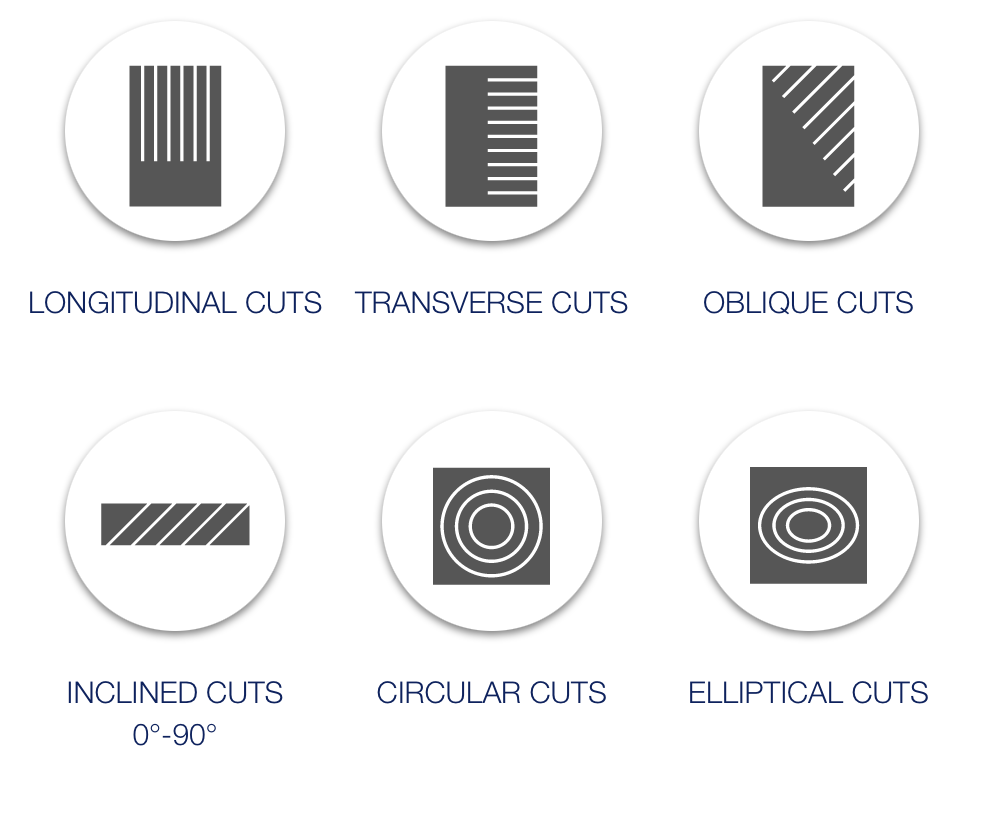

TYPES OF PROCESSING
COMPONENTS
Monoblock frame composed of supporting walls and supporting beams of the tilting bench, in hot-galvanized steel.
High quality electro-spindles controlled by an inverter allowing the adjustment of the nr. of revolutions from 0 to 5500 rpm, so granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.
Fixed base made of galvanized steel, that has been sandblasted and painted with three coats.
The machine has 2 access points (front and rear) for replacing the tools in safety conditions and for accessing the machine itselft easily for performing checks and maintenance.
System to detect slab, with camera positioned above the machine and image acquisition software. The application enables the slab dimensions to be exploited in the best way possible and allows the cutting to be carried out avoiding any defects or any veins in the material.
Vertical lateral electrospindle, allows the operator the use of small diameter diamond tools with ½ "gas connection for incremental cutting / blind or through hole drilling and the performance of combined operations with blade and milling cutter.
Measurement system of blade diameter.
System to automatically detect the thickness of the slab.
Suctions cups for lifting and positioning the cut pieces in order to exploit the slabs as much as possible.
SOFTWARE
Parametrix is the simple and intuitive Software developed by Donatoni Macchine and designed to optimise the management of cuts of variously-shaped pieces on a slab. It enables work processes involving cuts with discs, milling cutters and drills, the insertion of straight and curved forms and shapes that have been pre-set or imported from DXF files, and the optimisation of processing times and slab surfaces.
The CAD-CAM software allows you to design, import and execute 2D and 3D files in DXF, IGES, STL, PNT, STEP and RHINO formats and to define surfaces and shapes using laser scanning.
ISOSAG is the software that allows you to create files for executing shaping that is straight-lined or with a concave or convex arc using either a vertical or horizontal disc.
SCAN-CNC is a measuring system consisting of a laser pointer mounted at the head of the machine and a software integrated with Parametrix that allows you to measure bi-dimensional shapes with a linear or curved form and create the drawing in real time (DXF file) on the monitor.
It allows you to measure the surface of slabs placed on the workbench using a camera located on top of the machine and the acquisition software integrated with Parametrix.
