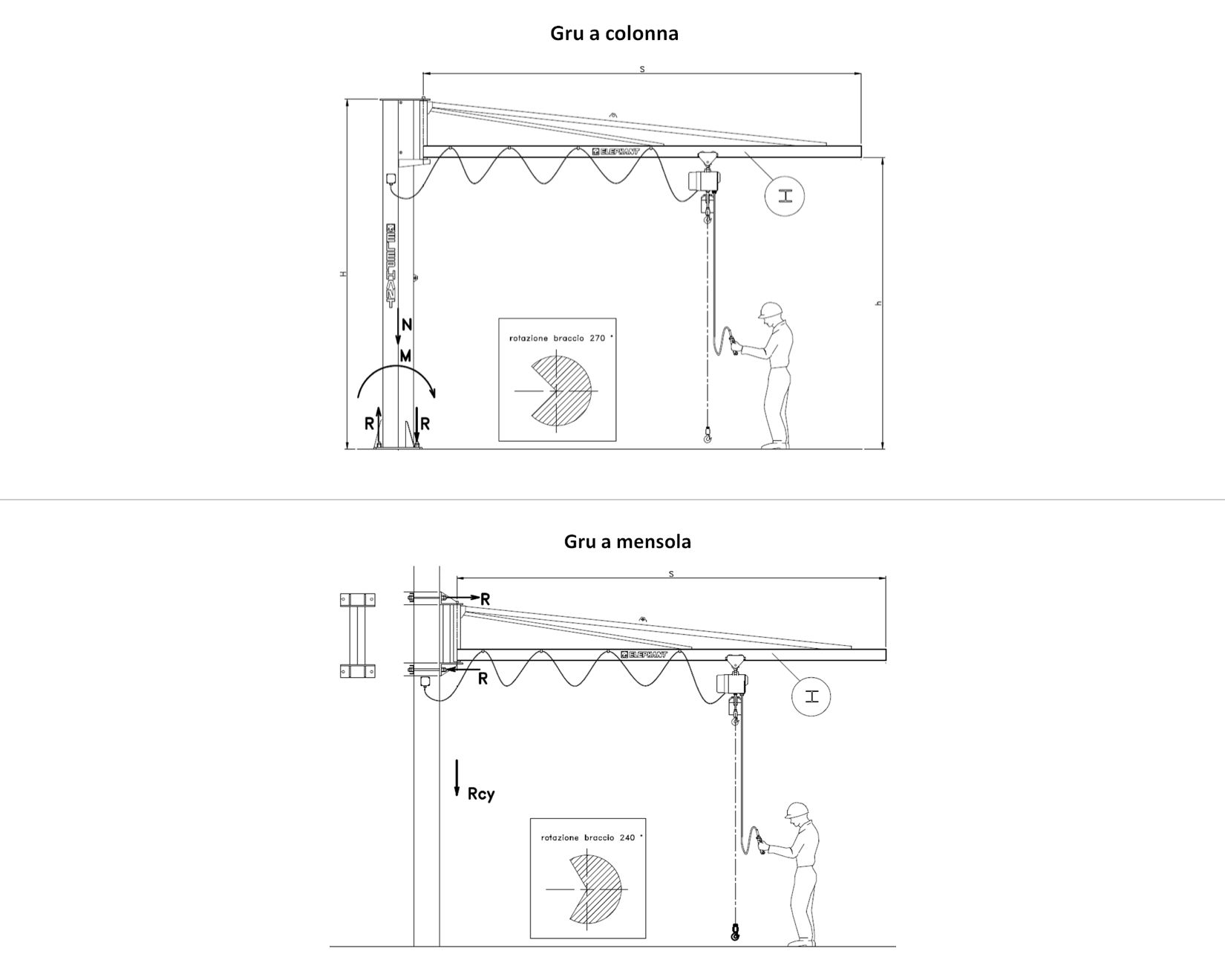

Column and bracket jib crane with tie-rod girder jib
Column and bracket jib crane with tie-rod girder jib:
Column:
Supplied with column, jib rotating on aball bearings, hoist trolley, adjustable ribbon brake
Electrical system with flat cable and plastic cable support, rustproof painting and two finishing coats.
Green Column RAL 6001
Yellow Arm RAL 1006
TECHNICAL DATA SHEET
|
DONATONI |
BELT S1 |
BELT S2 |
BELT S3 Q |
|
|---|---|---|---|---|
|
Max number of interpolated axes |
N° |
5 |
5 |
5 |
|
Vertical stroke Z axis |
mm |
450 |
550 |
600 |
|
Blade-carrying head rotation (C axis) |
gradi |
-5° / +365° |
-5° / +365° |
-5° / +365° |
|
Blade-carrying head tilting (A axis) |
gradi |
0° / 90° |
0° / 90° |
0° / 90° |
|
Maximum cutting depth |
mm |
200 |
250 |
250 |
|
Spindle power |
kW |
13,6 |
17 |
17/22 |
|
Carriage stroke X axis |
mm |
3800 |
3800 |
3900 |
|
Bridge stroke Y axis |
mm |
2900 |
2900 |
2950 |
|
Minimum blade diameter |
mm |
350 |
350 |
350 |
|
Maximum disc diameter |
mm |
625 |
725 |
725 |
|
Approx. total weight of the machine |
kg |
9500 |
10600 |
11500 |
|
Standard voltage |
V/Hz |
400±10% / 50 |
400±10% / 50 |
400±10% / 50 |
