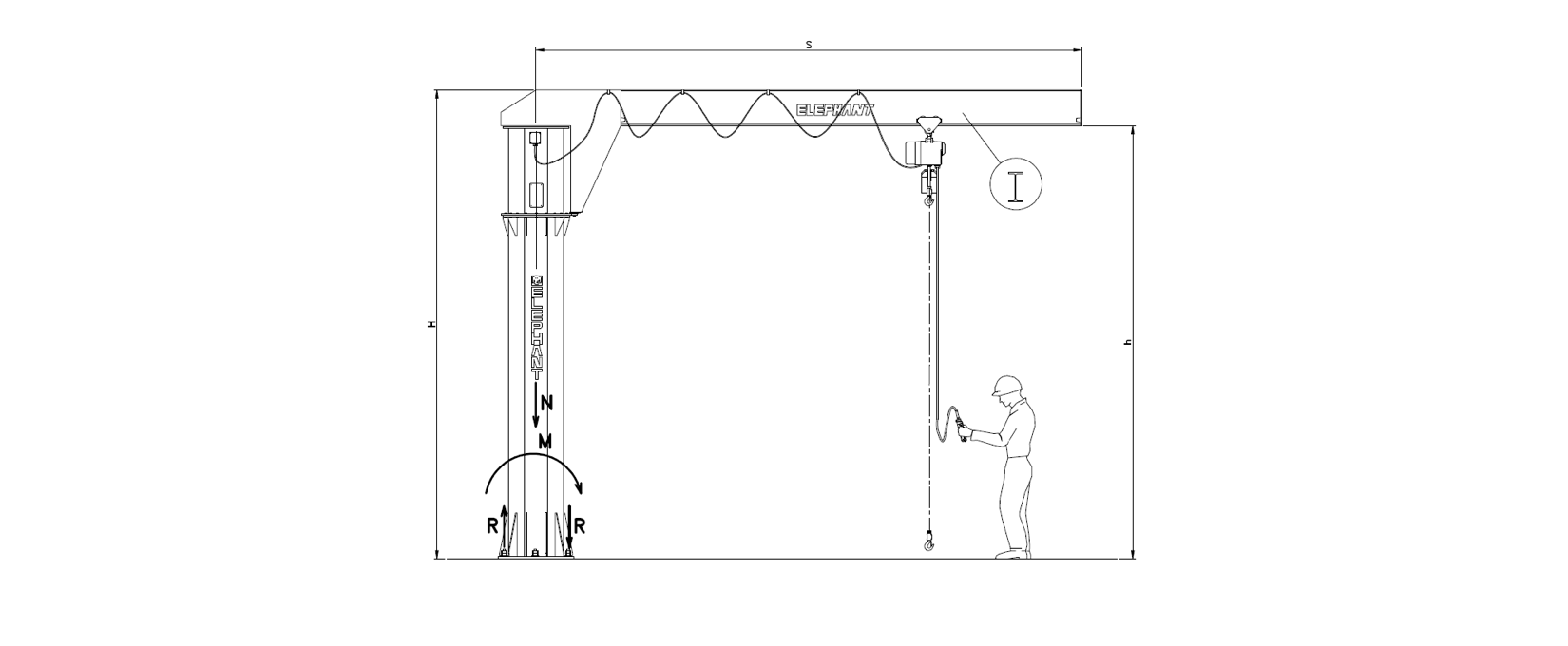

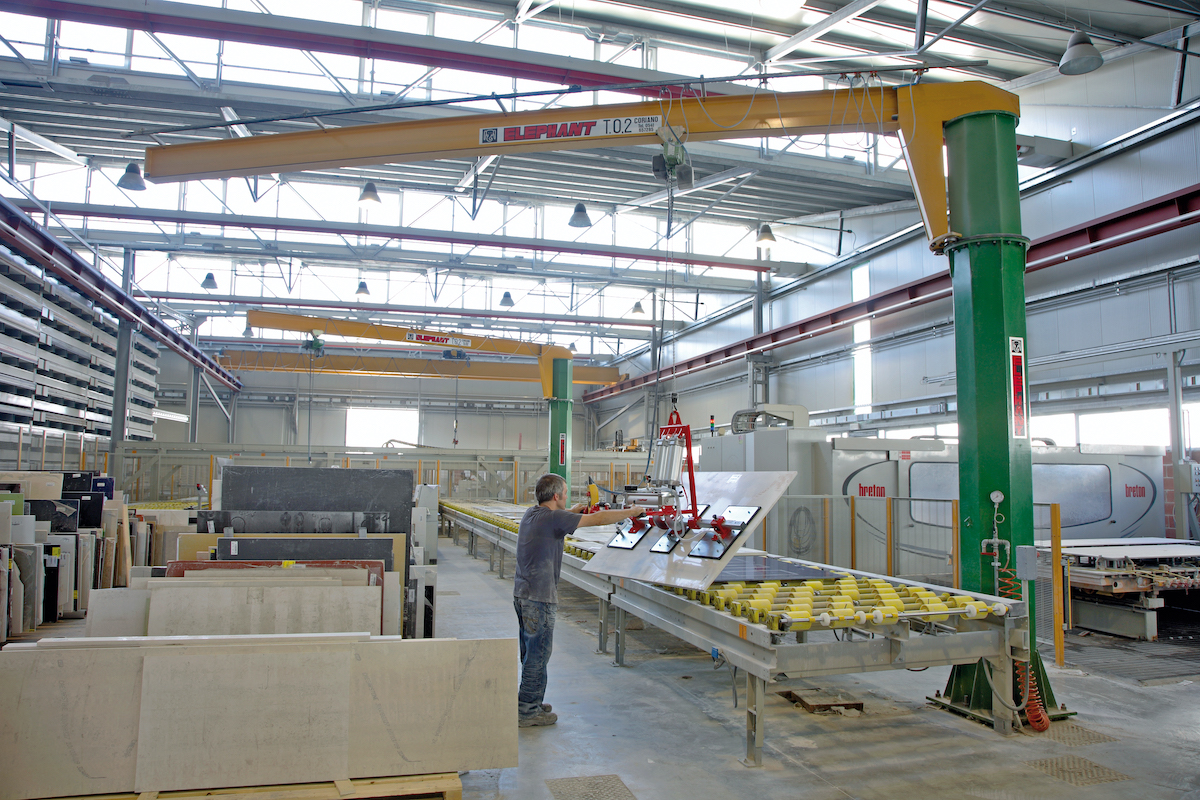

Crane with 360° manual rotation
Column mounted jib crane with 0-360° manual rotation
The cranes are supplied complete with:
Electrical unit made up of a galvanized ducted section with ribbon cable
multi-polar line collector
assembly instructions
painted with anti-rust treatment and two coats of enamel:
RAL 6001 green column
RAL 1006 yellow arm
All equipment produced by ELEPHANT SRL complies with the standards of the Machines Directive and is accompanied by a user and maintenance booklet as well as the EC Declaration of Conformity.
TECHNICAL DATA SHEET
|
DONATONI |
BELT S1 |
BELT S2 |
BELT S3 Q |
|
|---|---|---|---|---|
|
Max number of interpolated axes |
N° |
5 |
5 |
5 |
|
Vertical stroke Z axis |
mm |
450 |
550 |
600 |
|
Blade-carrying head rotation (C axis) |
gradi |
-5° / +365° |
-5° / +365° |
-5° / +365° |
|
Blade-carrying head tilting (A axis) |
gradi |
0° / 90° |
0° / 90° |
0° / 90° |
|
Maximum cutting depth |
mm |
200 |
250 |
250 |
|
Spindle power |
kW |
13,6 |
17 |
17/22 |
|
Carriage stroke X axis |
mm |
3800 |
3800 |
3900 |
|
Bridge stroke Y axis |
mm |
2900 |
2900 |
2950 |
|
Minimum blade diameter |
mm |
350 |
350 |
350 |
|
Maximum disc diameter |
mm |
625 |
725 |
725 |
|
Approx. total weight of the machine |
kg |
9500 |
10600 |
11500 |
|
Standard voltage |
V/Hz |
400±10% / 50 |
400±10% / 50 |
400±10% / 50 |
